Sacramento

At a glance…

This node uses a Sacramento rainfall-runoff model to represent catchment inflows from a catchment of a fixed area. The model takes rainfall and potential evapotranspiration data and determines inflows. The Sacramento model has 17 parameters (including laguh) representing catchment characteristics.

[node.my_sacr_node]
type = sacramento
loc = 20, 30
area = 165
rain = data.rex_rain_csv.by_name.value
evap = data.rex_mpot_csv.by_name.value
params = 0,45,60,0.01,0.01,150,0,0.11,1.5,0,0.2,0.01,25,0.2,47,15,0.1
ds_1 = my_other_node

Node properties

Property Description
[node.?] (compulsory) Start of node declaration. This says we are creating a node, and also defines the name of the node. Node naming conventions are discussed at . Example: [node.my_sacr_node]
type (compulsory) The node type, which is “sacramento” in this case. type = sacramento
loc (compulsory) The location of the node in cartesian coordinates. Example: loc = 20, 30
area (compulsory) The catchment area [km2]. Example area = 165
rain (compulsory) Rainfall data [mm]. Example: rain = data.rex_rain_csv.by_name.value
evap (compulsory) Potential evapotranspiration data [mm]. Example: rain = data.rex_mpot_csv.by_name.value
params (compulsory) The Sacramento model parameters: adimp, lzfpm, lzfsm, lzpk, lzsk, lztwm, pctim, pfree, rexp, sarva, side, ssout, uzfwm, uzk, uztwm, zperc, laguh Example: params = 0, 45, 60, 0.01, 0.01, 150, 0, 0.11, 1.5, 0, 0.2, 0.01, 25, 0.2, 47, 15, 0.1
ds_1 (optional) Name of the downstream node. This property defines a downstream link. Gr4j nodes may only have 1 downstream link. Example: ds_1 = my_other_node

All seventeen model parameters — and the rainfall-weighting terms, when rain is a linear combination of stations — can be calibrated with the built-in optimiser: see Optimisable parameters.

Results associated with this node

Result Description
dsflow Downstream flow [ML]
usflow Upstream flow [ML]
ds_1 Downstream flow on link ds_1 [ML]
ds_1_order Order on link ds_1 [ML]
runoff_volume Catchment runoff volume from Sacramento model [ML]
runoff_depth Catchment runoff depth from Sacramento model [mm]
rain Input rainfall [mm]
evap Input evapotranspiration [mm]
flosf Internal flux component - surfaceflow [ML]
floin Internal flux component - interflow [ML]
flobf Internal flux component - baseflow [ML]
roimp Internal flux component - impervious runoff [ML]
uztw Upper zone tension water at the end of the step [mm]
uzfw Upper zone free water at the end of the step [mm]
lztw Lower zone tension water at the end of the step [mm]
lzfp Lower zone primary free water at the end of the step [mm]
lzfs Lower zone supplemental free water at the end of the step [mm]
area Catchment area [km2] — the declared area value, static for the whole run. See Static Node Properties.

The five store results (uztw, uzfw, lztw, lzfp, lzfs) are depths over the pervious area; see Soil moisture store outputs.

How the node works

The sacramento node adds inflows from a Sacramento rainfall-runoff model (Burnash, 1973) to the system. The downstream flow is therefore

dsflow = usflow + runoff_volume

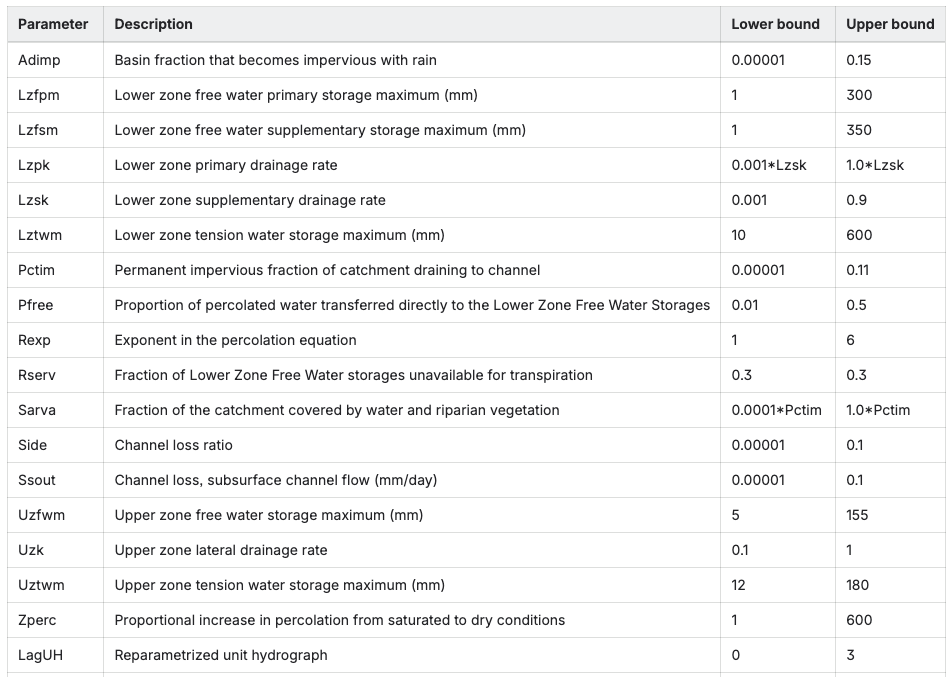

Parameters for soil moisture and Stores

  • UZTWM (Upper Zone Tension Water Maximum): Defines the maximum capacity of the upper soil zone to hold water under tension.

  • UZFWM (Upper Zone Free Water Maximum): Represents the maximum capacity of the upper zone to hold free water.

  • LZTWM (Lower Zone Tension Water Maximum): The maximum capacity for tension water in the lower soil zone.

  • LZFSM (Lower Zone Free Water Maximum for Soil): Maximum capacity for free water in the lower zone soil.

  • LZFPM (Lower Zone Free Water Maximum for Percolation): Maximum capacity of the lower zone's free water that influences percolation.

  • RSERV (RSERV parameter): Not always optimised due to its low sensitivity, this parameter is generally the amount of water in the lower zone's free water stores that isn't available for transpiration.

Parameters for Flow Rates and Percolation

  • LZPK, LZSK, UZK: These depletion coefficients determine the rate at which water discharges from the free water storages in the upper and lower zones.

  • PFREE: Controls the percolation rate of water from the upper zone to the lower zone.

  • REXP (Percolation exponential factor): Modifies the rate of water percolation from the upper to the lower zone.

  • ZPERC: Another parameter influencing the percolation of water from the upper to the lower free water stores.

Parameters for Runoff and Losses

  • PCTIM (Percent Impervious): The proportion of the catchment that is considered an impervious area, which generates quick runoff.

  • ADIMP (Impervious Area Delay): Influences the time delay for runoff from the impervious area.

  • SIDE: Ratio of baseflow lost to groundwater to baseflow that reaches the channel.

  • SSOUT: Fixed depth [mm] taken from channel flow each step.

  • SARVA: A parameter for losses from the system.

Parameters for Runoff Routing

  • LagUH is a single-value reparameterisation of the five original unit hydrograph parameters UH1 - UH5. This represents the shape of the unit hydrograph which is used to route instantaneous runoff through the system allowing for delays in the runoff process.

LagUH

LagUH is the delay, in days, between runoff being generated and reaching the catchment outlet. It stands in for the five unit-hydrograph ordinates UH1 to UH5 of the original model, which Kalix does not take. The engine turns it into a unit hydrograph with at most two non-zero ordinates: a whole-number LagUH shifts the day's runoff by that many days, and a fractional one splits it between the two days either side, so that the mean delay is exactly LagUH. For example, laguh = 1 sends all of today's runoff out tomorrow; laguh = 0.3 sends 70% out today and 30% tomorrow. The hydrograph routes surface runoff, interflow and impervious-area runoff; baseflow bypasses it.

Forward: LagUH to ordinates. With \(n = \lceil \text{LagUH} \rceil\) and \(UH_0\) the ordinate for the same day,

\[ UH_{n-1} = n - \text{LagUH}, \qquad UH_n = \text{LagUH} - (n - 1), \qquad UH_i = 0 \text{ otherwise.} \]

Backward: ordinates to LagUH. For a set of ordinates that sums to 1,

\[ \text{LagUH} = \sum_{i \ge 0} i \cdot UH_i \]

This recovers LagUH exactly when the set has the two-ordinate form above. For any other set it gives the value with the same mean delay, but the shape is not reproduced, so recalibrate rather than rely on the converted value.

References

Burnash, R. J. (1973). A generalized streamflow simulation system: Conceptual modeling for digital computers. US Department of Commerce, National Weather Service, and State of California, Department of Water Resources.
